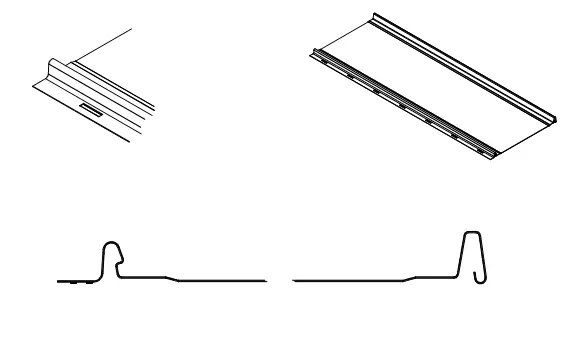

DMS NF 1.0 Roofing/Wall Panel
The DMS NF 1.0 Standing seam roofing panel is a good choice for both residential and light commercial use. It features a 1” profile height. It is manufactured with a fastener flange with slotted fastener holes for ease of installation. Its interlocking snap lock design allows it to be installed quickly and efficiently without needing clips or on-site seaming which reduces installation time and labor costs.
Panel Details:
Panel Type: Standing Seam
Panel Seam: Snap Lock
Panel Widths: 16”-20”
Seam Height: 1”
Panel Material: 26 GA - 24 GA
Panel Attachment: Fastener Flange
Minimum Slope: 3/12
Substrate requirements: Plywood/Solid Decking
Product: Metal Roofing Panel Profile

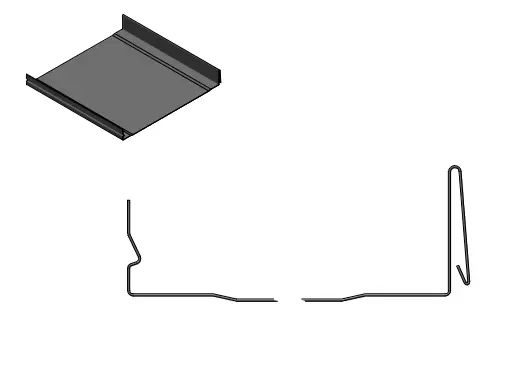

DMS MS 1.5 Roofing Panel
The DMS MS 1.5 Standing seam roofing panel is a good option when you have a low sloped roof that is below 3/12 pitch or it is specified on a project. This panel is a good choice for both residential and light commercial use. It has a 1.5” Seam height. It is installed using a clip and needs to be mechanically seamed after installation. Seaming can be either single or double lock with the option of installing butyl in the laps to ensure weather tightness. This panel is also able to be curved to install on rounded roofs.
Panel Details:
Panel Type: Standing Seam
Panel Seam: Mechanical
Panel Widths: 16”-20”
Seam Height: 1.5”
Panel Material: 26 GA - 24 GA
Panel Attachment: Clip
Minimum Slope: 1/12
Substrate requirements: Plywood/Solid Decking

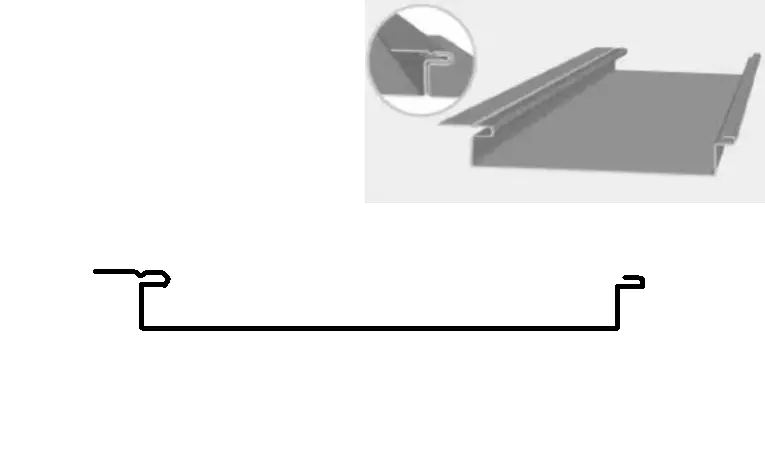

DMS SL 1.5 Roofing Panel
The DMS SL 1.5 Standing seam roofing panel is designed for residential and commercial applications. It is a top selling panel with a distinctive looking rib to add a sharp "stand-out look to your roof. It is a Snap-Lock panel and has a 1.5” Seam height. It is installed using a floating clip to allow for expansion and contraction in applications that require long-length panels. Its interlocking snap lock design allows it to be installed quickly and efficiently without needing clips or on-site seaming which reduces installation time and labor costs.
Panel Details:
Panel Type: Standing Seam
Panel Seam: Snap Lock
Panel Widths: 16”-20”
Seam Height: 1.5”
Panel Material: 26 GA - 24 GA
Panel Attachment: Clip
Minimum Slope: 3/12
Substrate requirements: Plywood/Solid Decking
Product: Metal Roofing Panel Profile

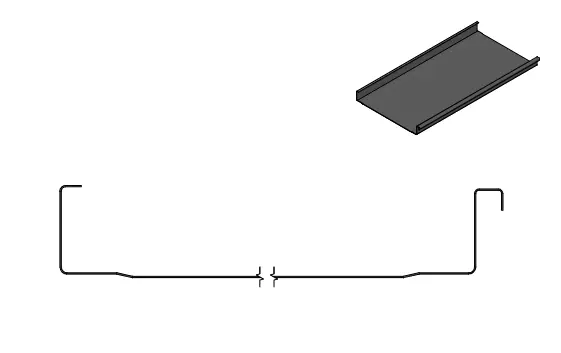

DMS FW 1.0 Soffit/Wall Panel
The DMS FW 1.0 panel profile is versatile in that you can use it as a wall panel, soffit panel, and under-decking. The panel sits 1 inch off your wall/ soffit and comes standard at 12 inches wide. The roller set also has an optional perforator / crimper that adds venting holes to the finished panel for use as a vented soffit panel. It also has a 0” to 3” adjustable reveal on the roller set assembly that you can engage as it suits your project requirements.
Panel Details:
Panel Type: Standing Seam
Panel Seam: Mechanical
Panel Widths: 12"-16"
Seam Height: 1.5”
Panel Material: 26 GA - 24 GA
Panel Attachment: Fastener Flange
